Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

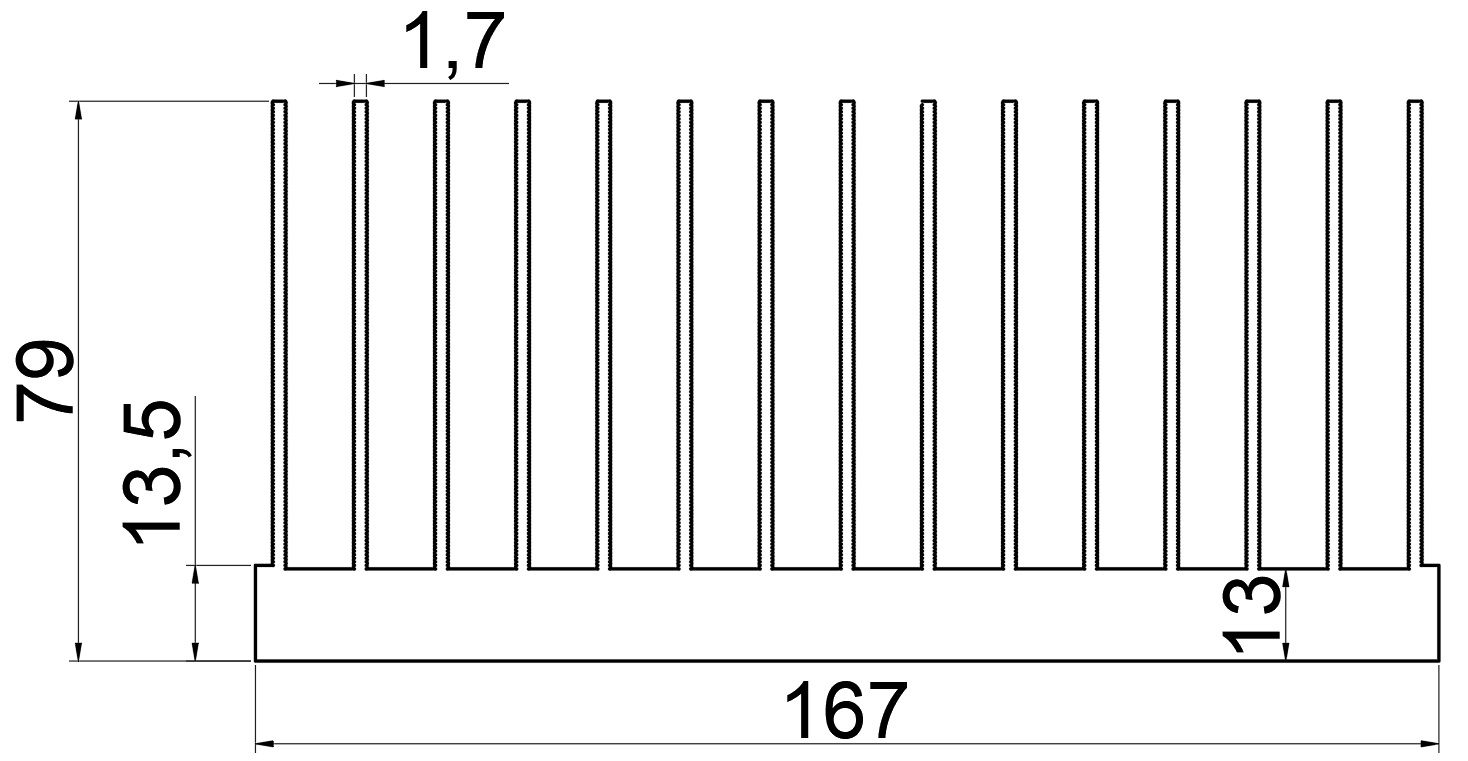

| WD-06763 | 167.000 | 79.000 | 10.800 |  |
|

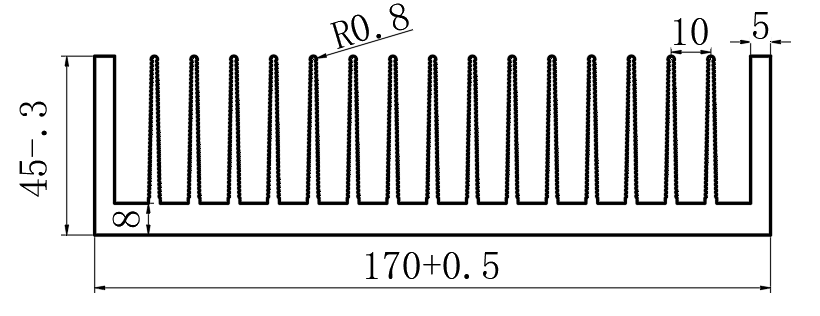

| WD-06764 | 170.000 | 45.000 | 7.700 |  |
|

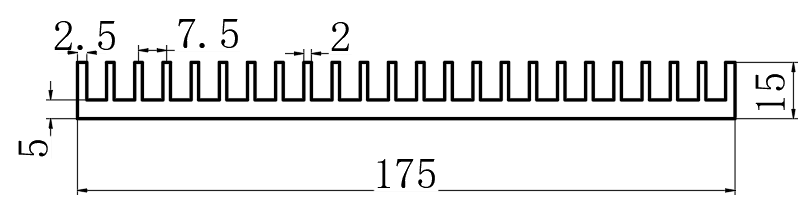

| WD-06765 | 175.000 | 15.000 | 3.710 |  |
|

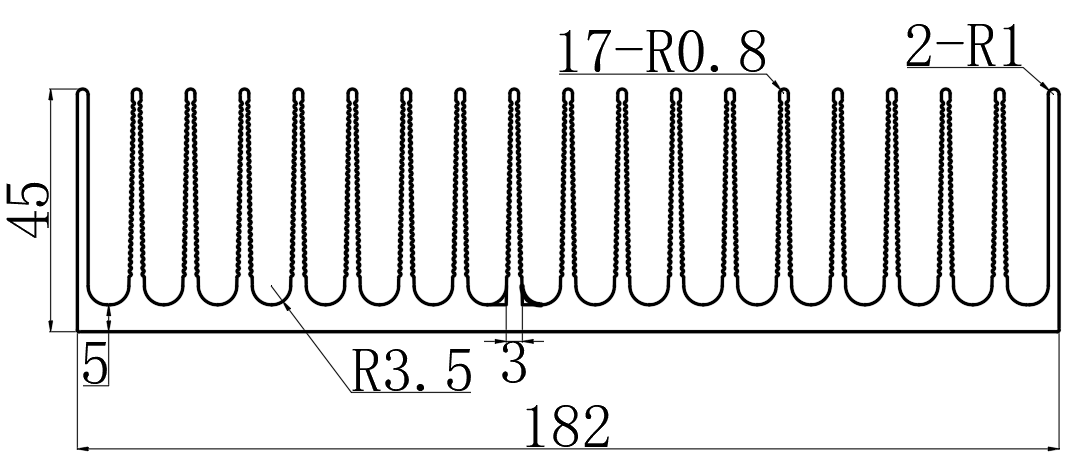

| WD-06766 | 182.000 | 45.000 | 6.700 |  |
|

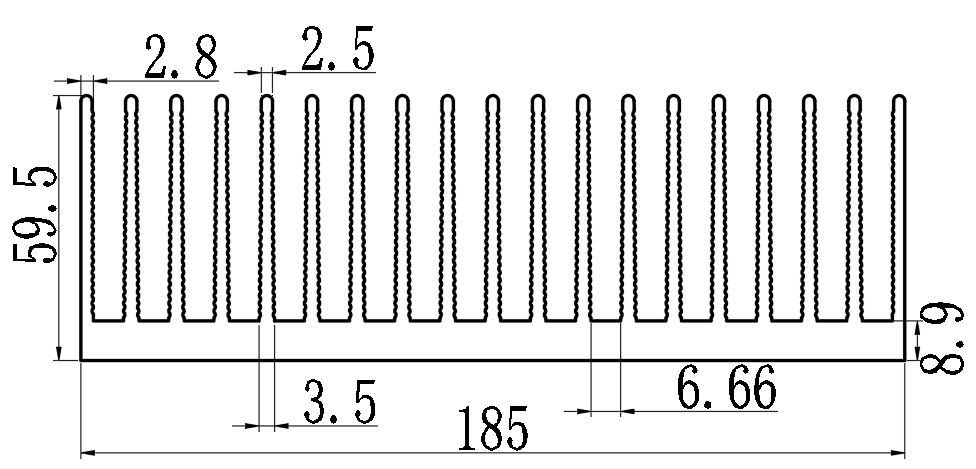

| WD-06767 | 185.000 | 59.500 | 11.533 |  |
|

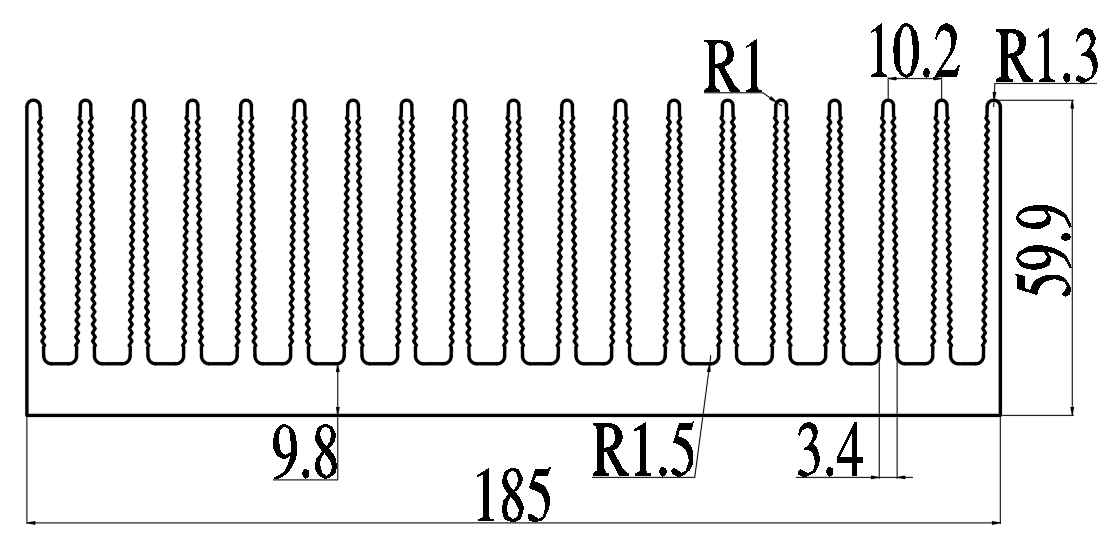

| WD-06768 | 185.000 | 59.900 | 11.750 |  |
