Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

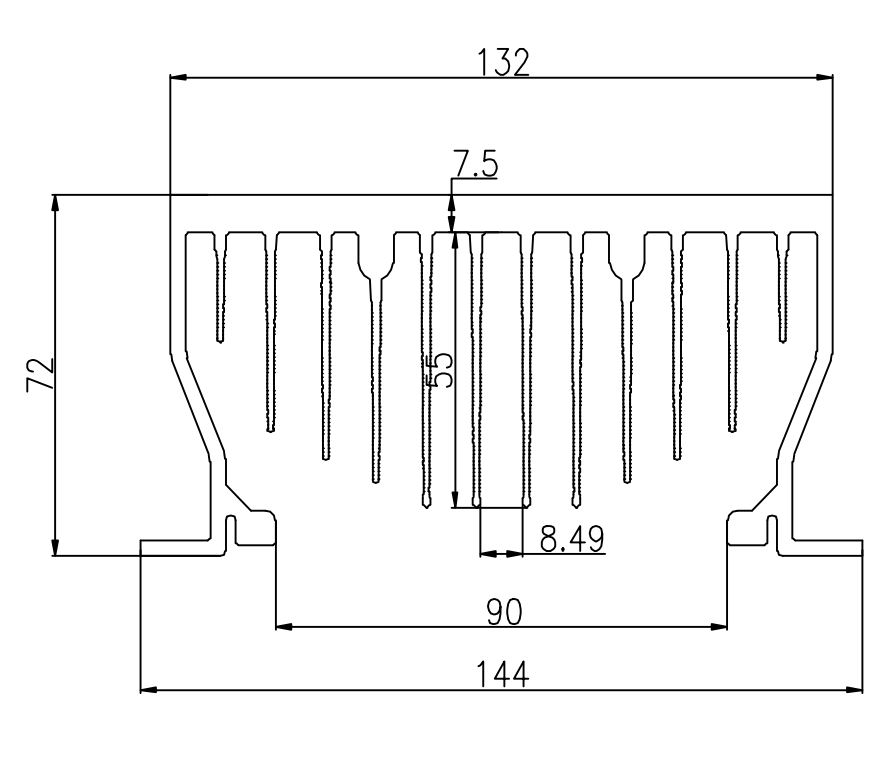

| WD-07861 | 144.000 | 72.000 | 6.895 |  |
|

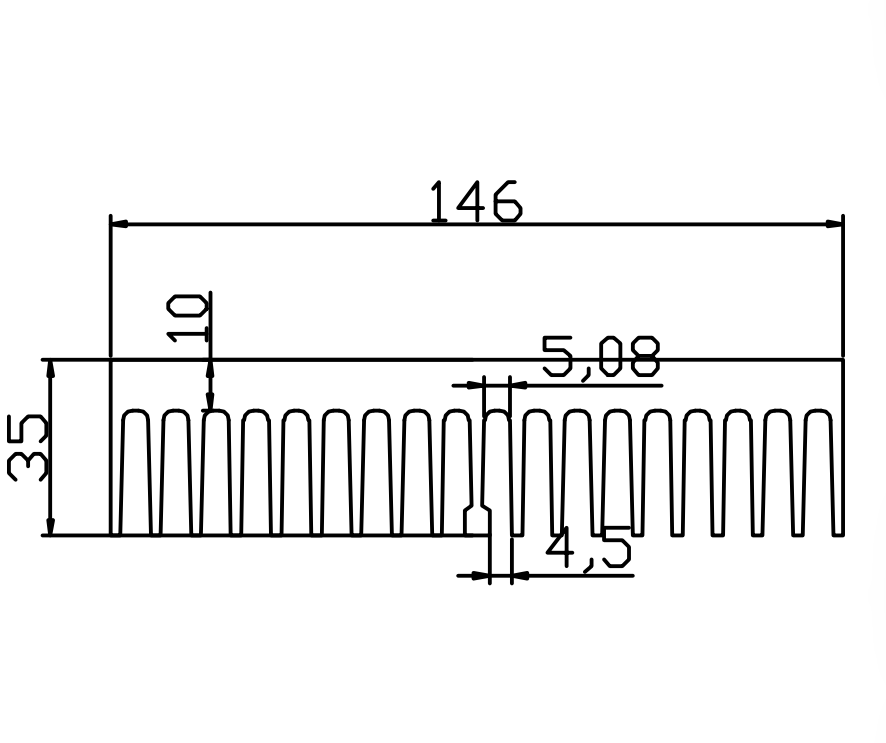

| WD-07862 | 146.000 | 35.000 | 7.290 |  |
|

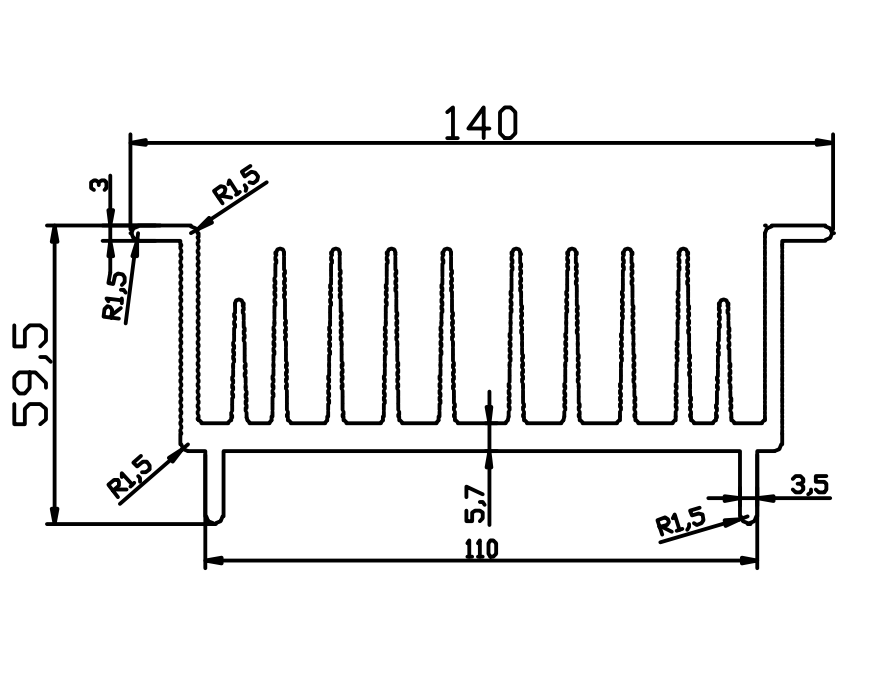

| WD-07863 | 140.000 | 59.500 | 5.030 |  |
|

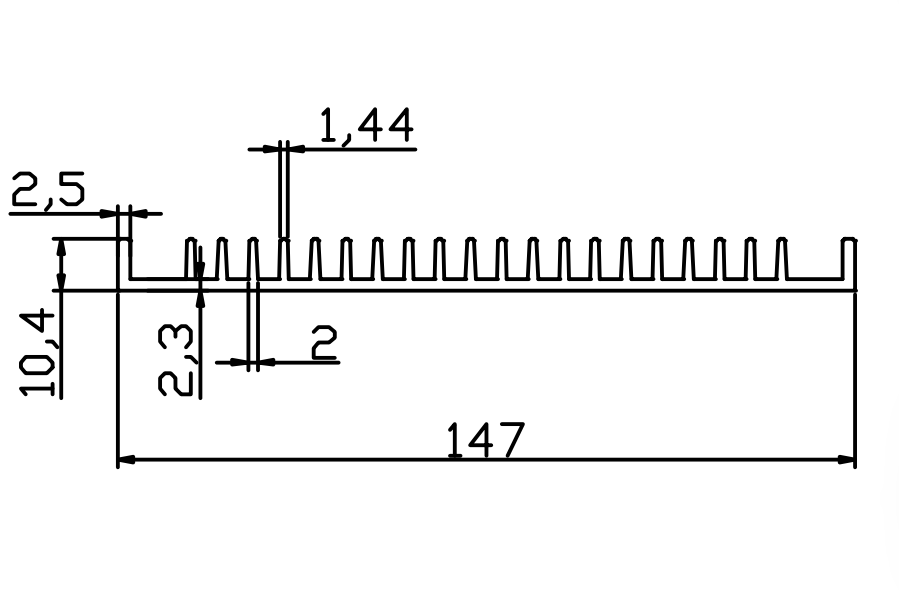

| WD-07864 | 147.000 | 10.400 | 1.770 |  |
|

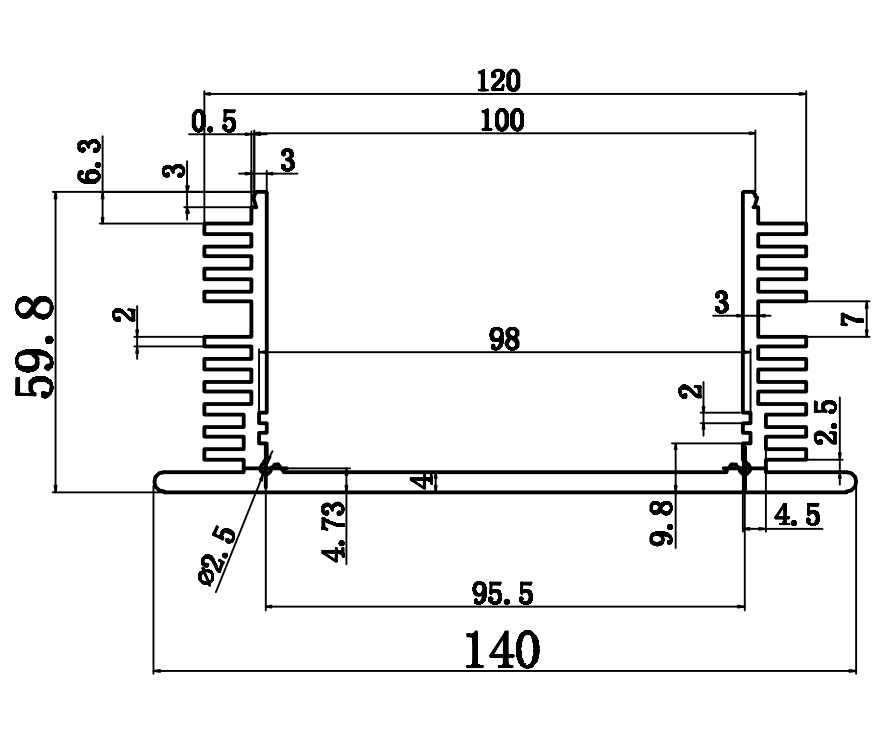

| WD-07865 | 140.000 | 59.800 | 3.472 |  |
|

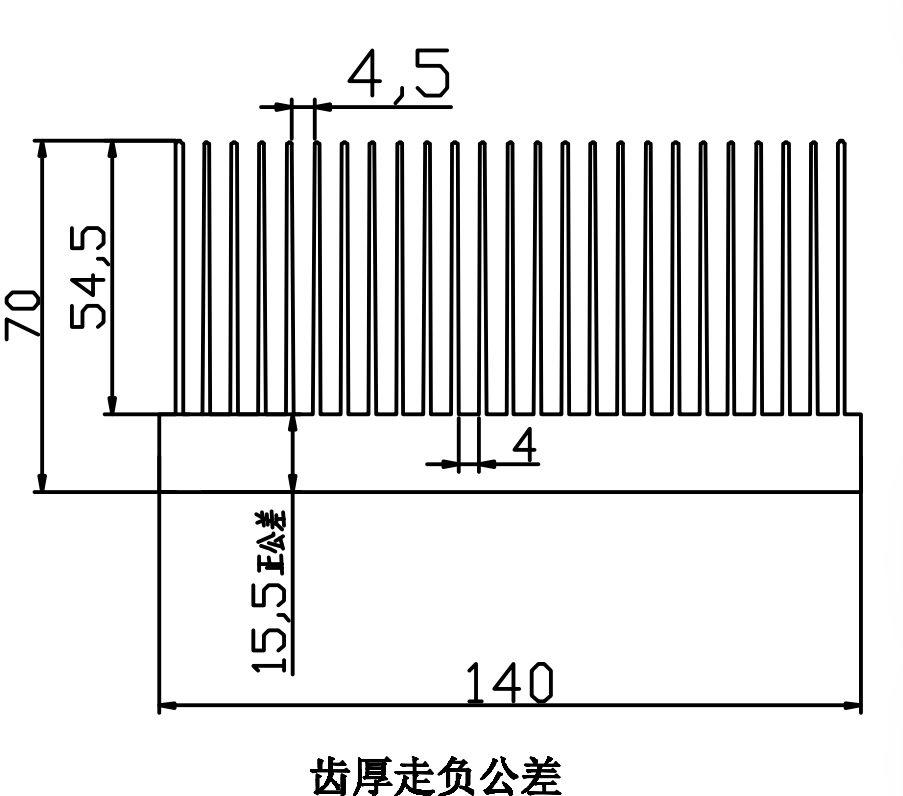

| WD-07866 | 140.000 | 70.000 | 10.590 |  |
