Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

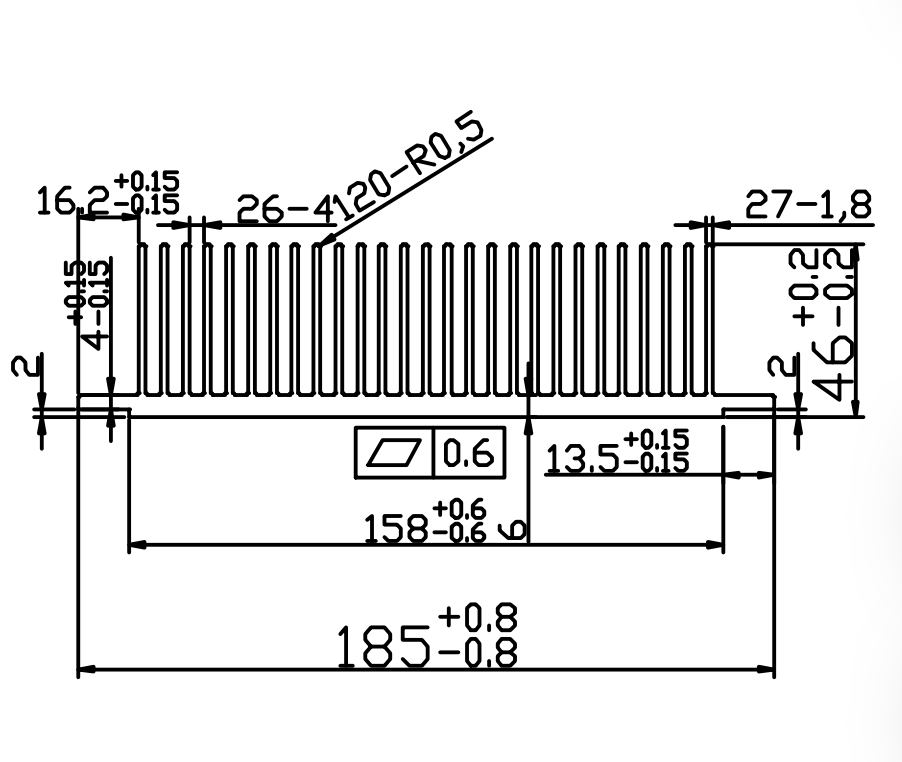

| WD-08101 | 185.000 | 46.000 | 8.160 |  |
|

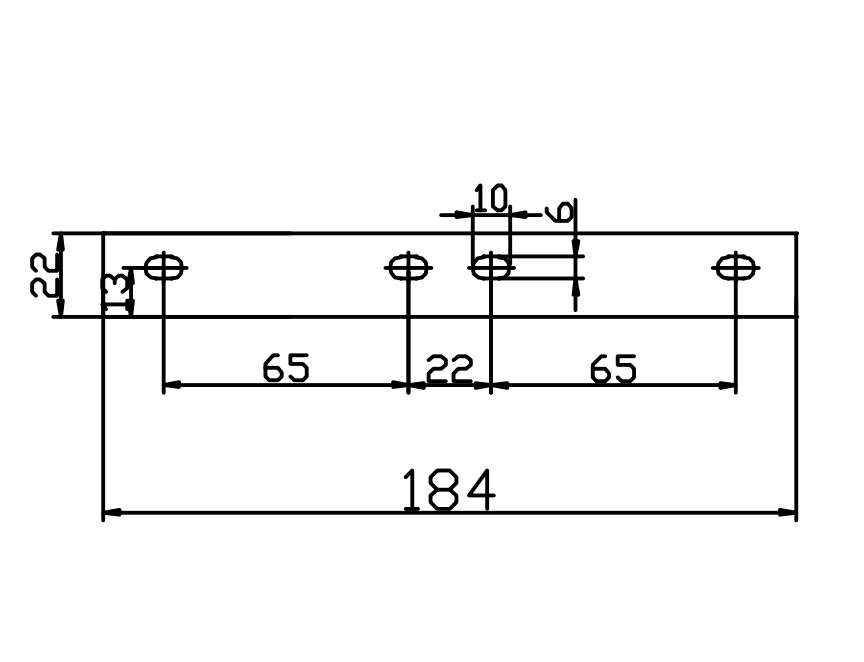

| WD-08102 | 184.000 | 22.000 | 10.440 |  |
|

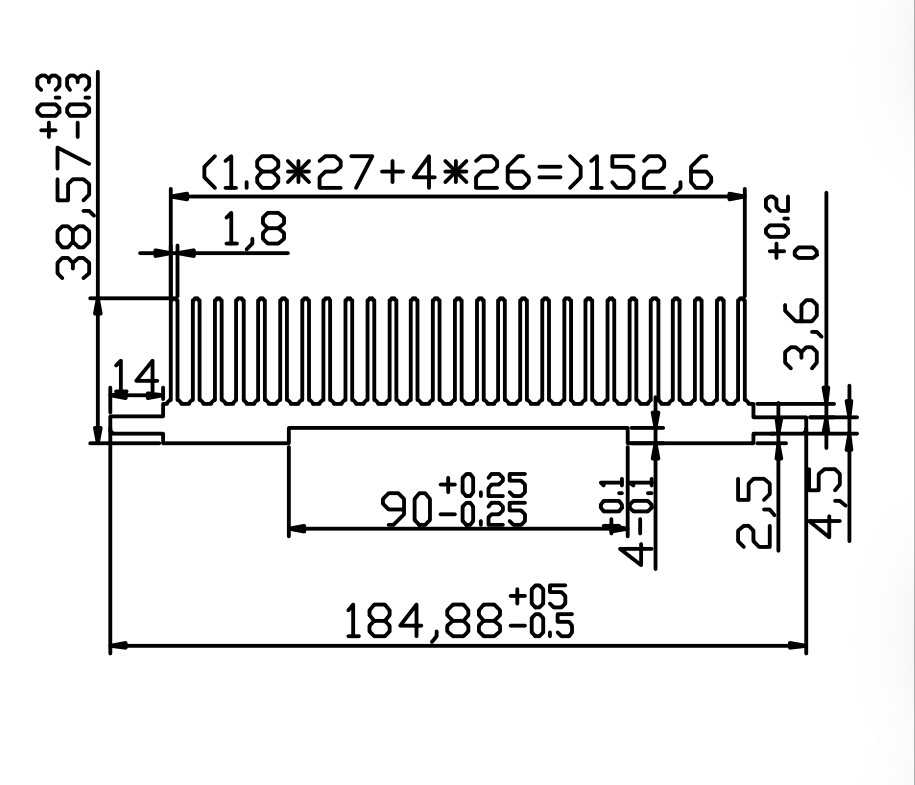

| WD-08103 | 184.880 | 38.570 | 7.610 |  |
|

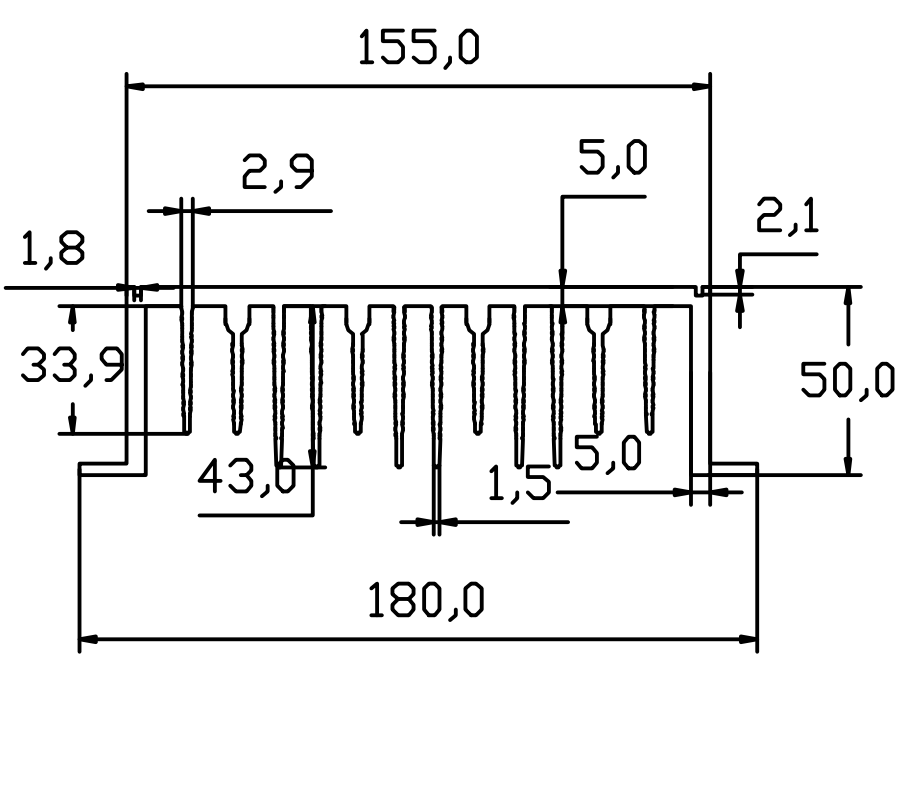

| WD-08104 | 180.000 | 50.000 | 6.570 |  |
|

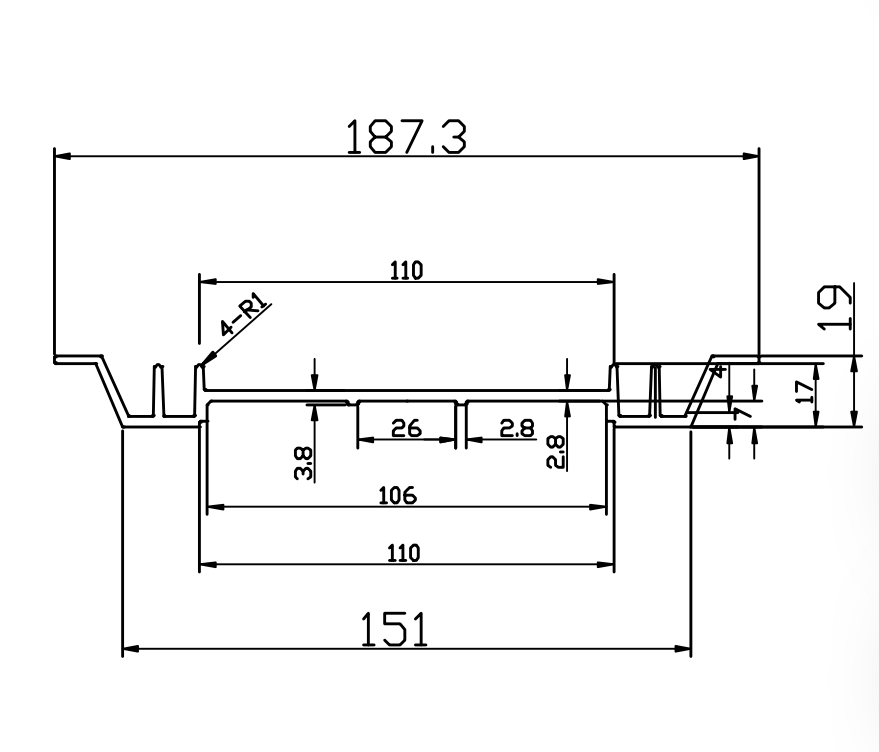

| WD-08105 | 187.300 | 19.000 | 1.900 |  |
|

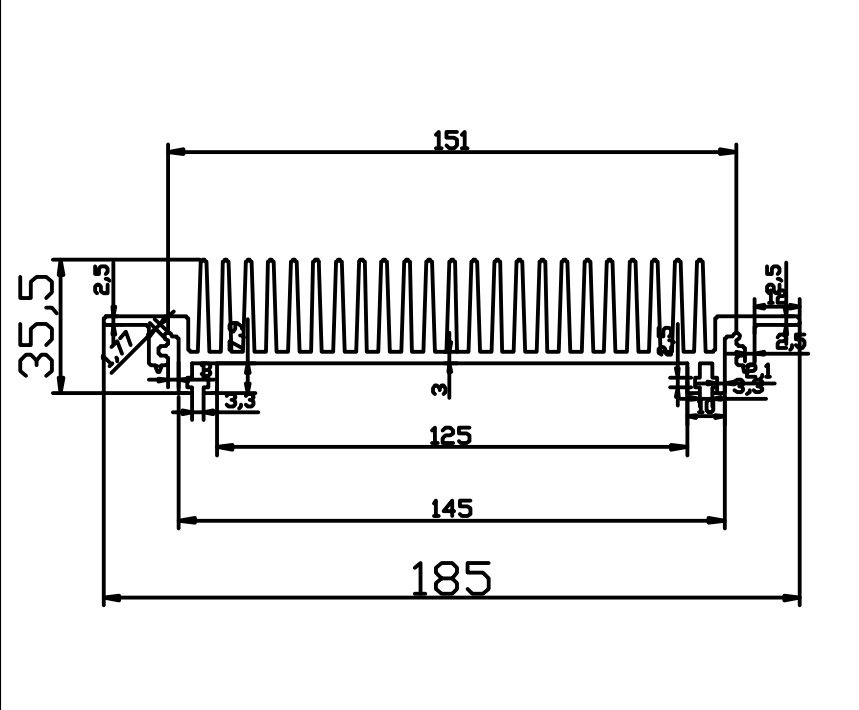

| WD-08106 | 185.000 | 35.500 | 5.500 |  |
