Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

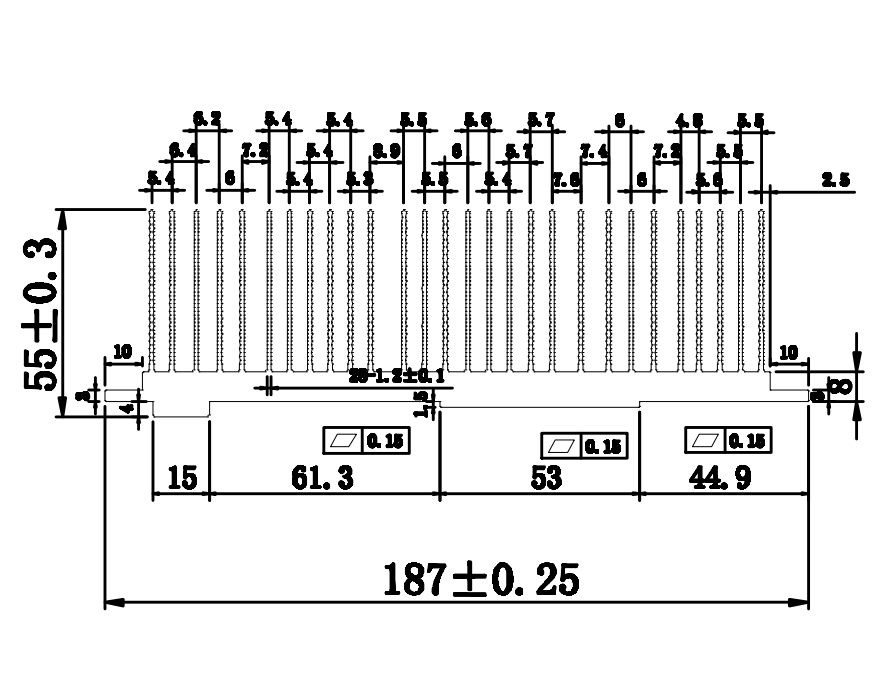

| WD-08125 | 187.000 | 55.000 | 7.660 |  |
|
| WD-08126 | 182.000 | 45.500 | 6.650 |  |
|

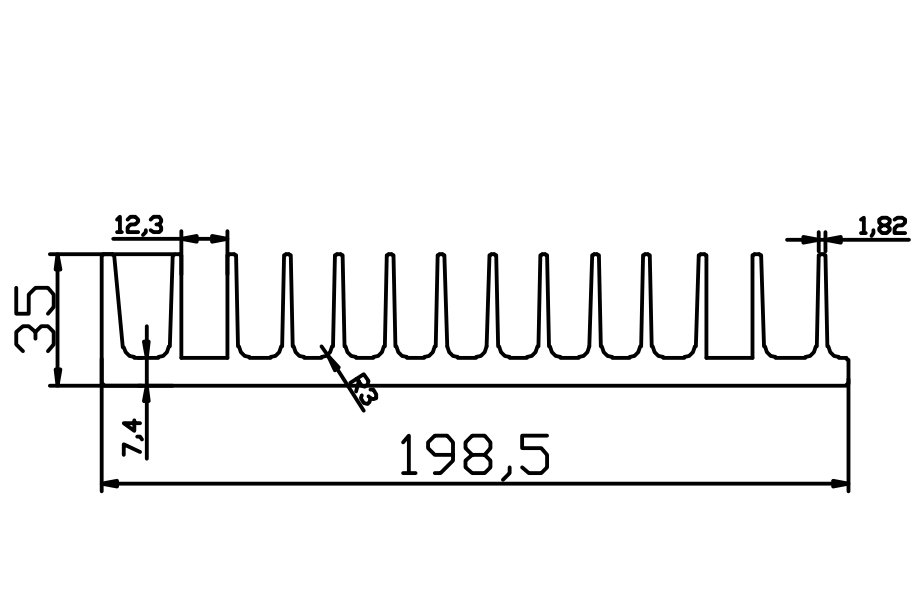

| WD-08127 | 198.500 | 35.000 | 6.830 |  |
|

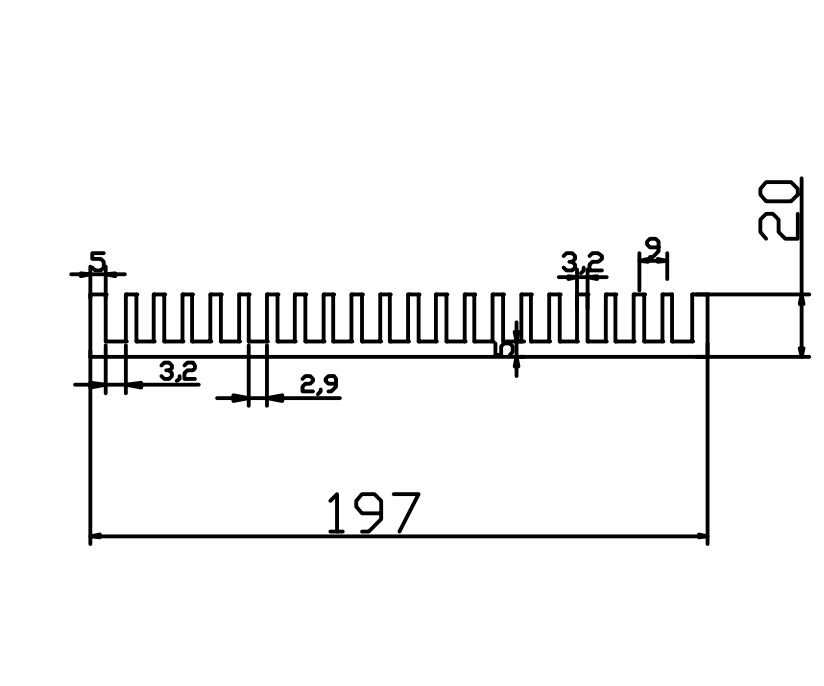

| WD-08128 | 197.000 | 20.000 | 5.660 |  |
|

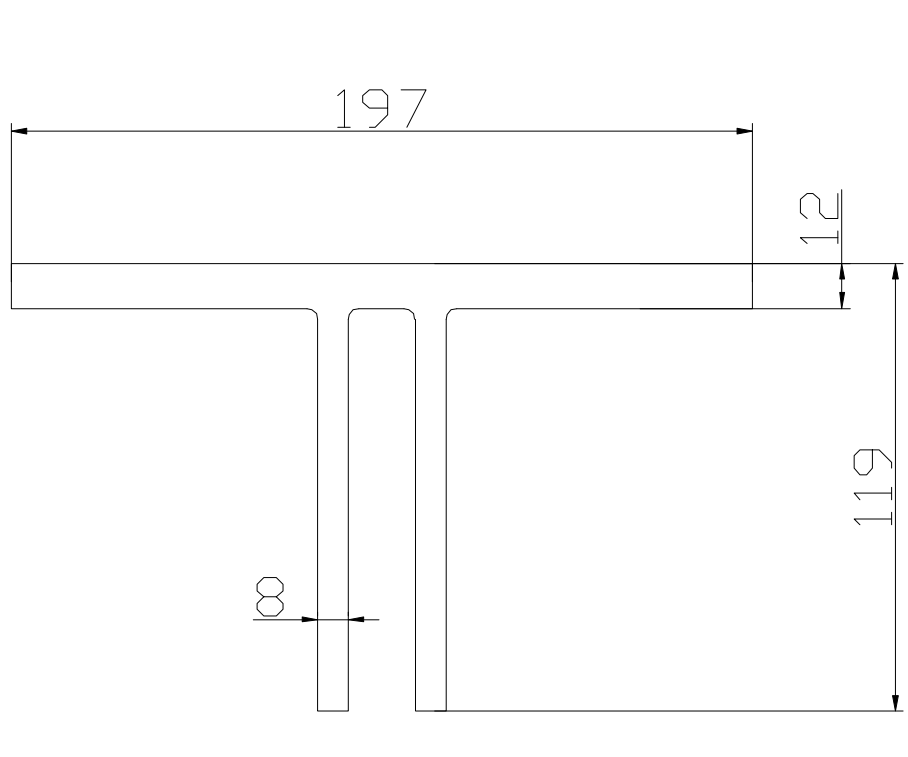

| WD-08129 | 197.000 | 119.000 | 11.020 |  |
|

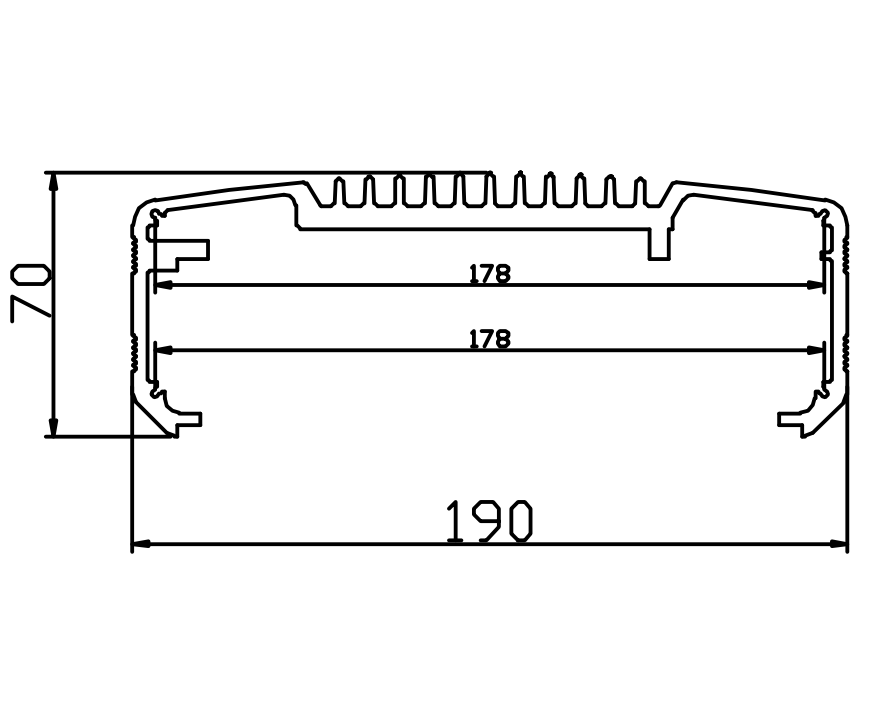

| WD-08130 | 190.000 | 70.000 | 5.030 |  |
