Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

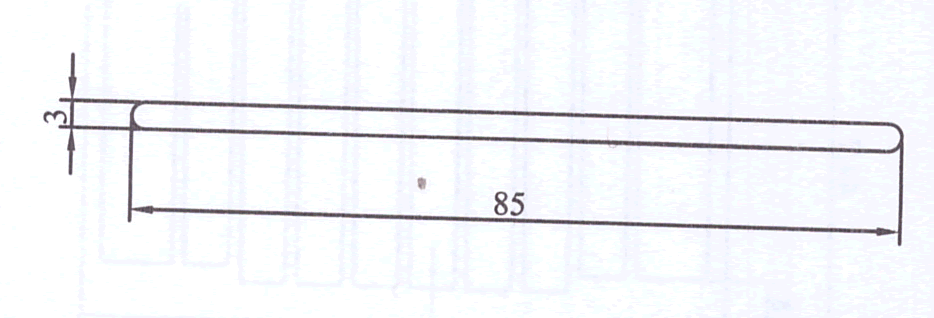

| WD-05017 | 85.000 | 3.000 | 0.680 |  |
|

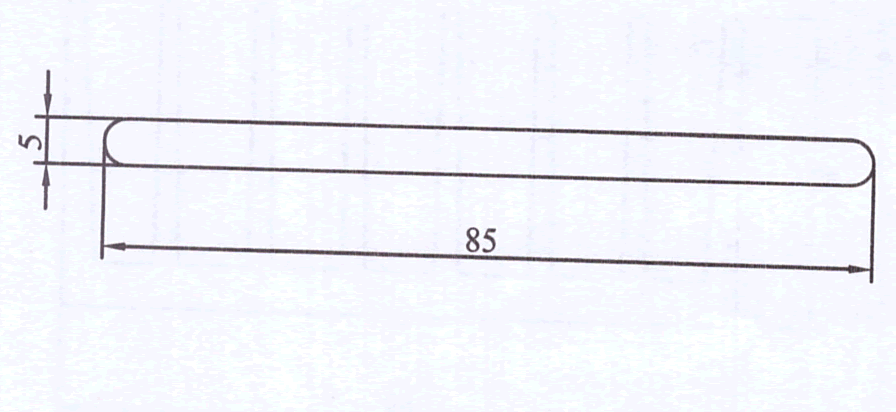

| WD-05018 | 85.000 | 5.000 | 1.130 |  |
|

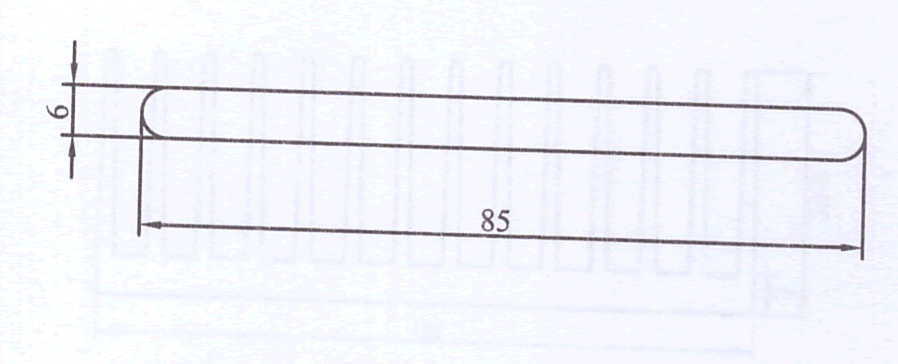

| WD-05019 | 85.000 | 6.000 | 1.360 |  |
|

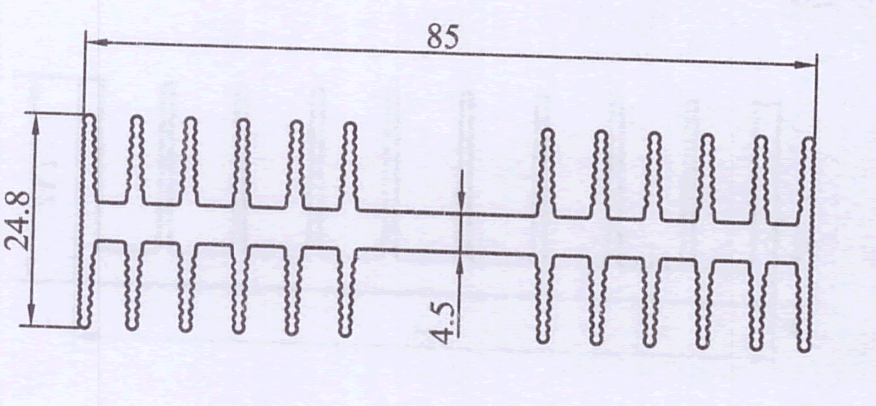

| WD-05020 | 85.000 | 24.800 | 1.920 |  |
|

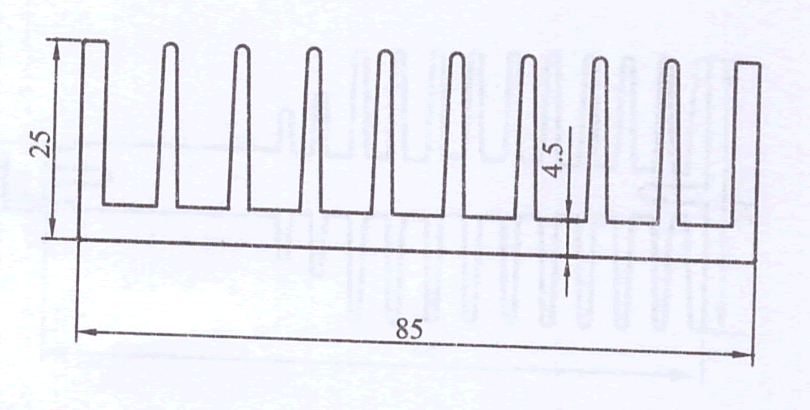

| WD-05021 | 85.000 | 25.000 | 2.280 |  |
|

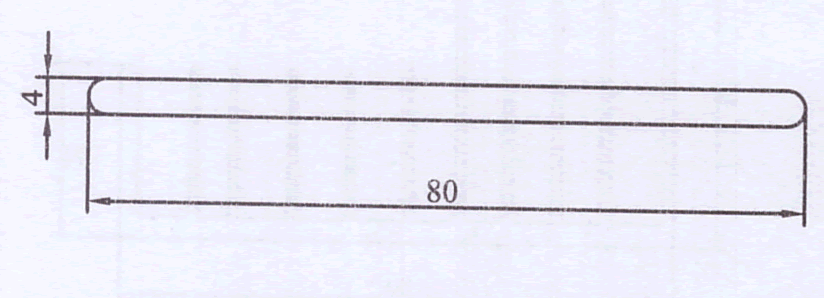

| WD-05022 | 80.000 | 4.000 | 0.850 |  |
