| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

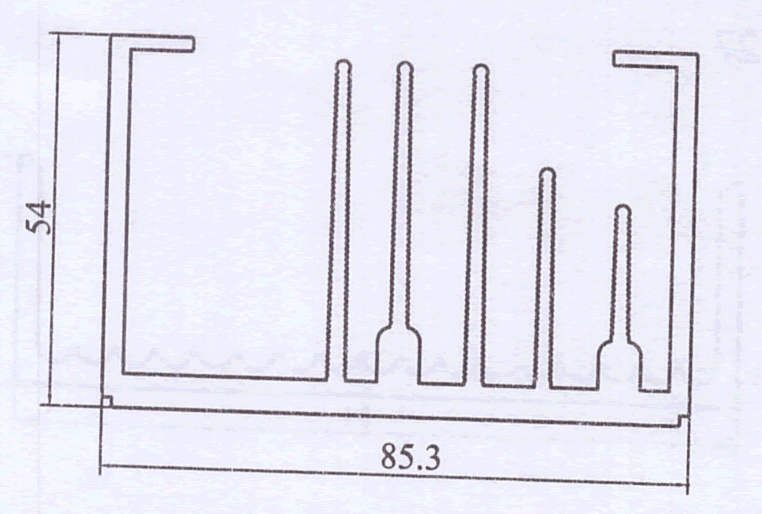

| WD-05023 | 85.300 | 54.000 | 3.200 |  |
|

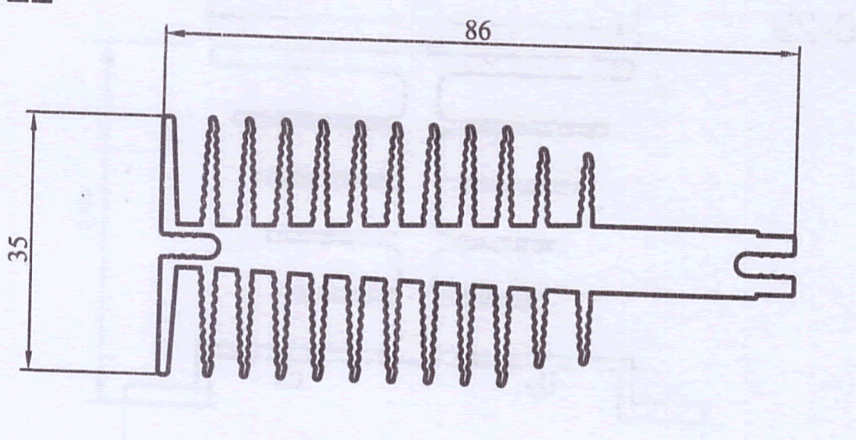

| WD-05024 | 86.000 | 35.000 | 2.880 |  |
|

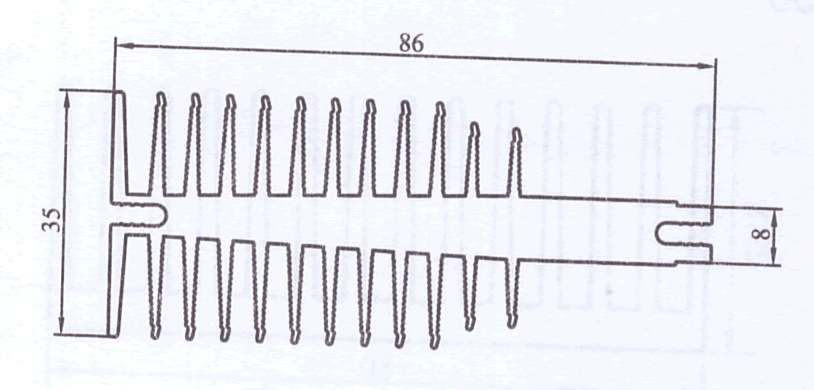

| WD-05025 | 86.000 | 35.000 | 2.940 |  |
|

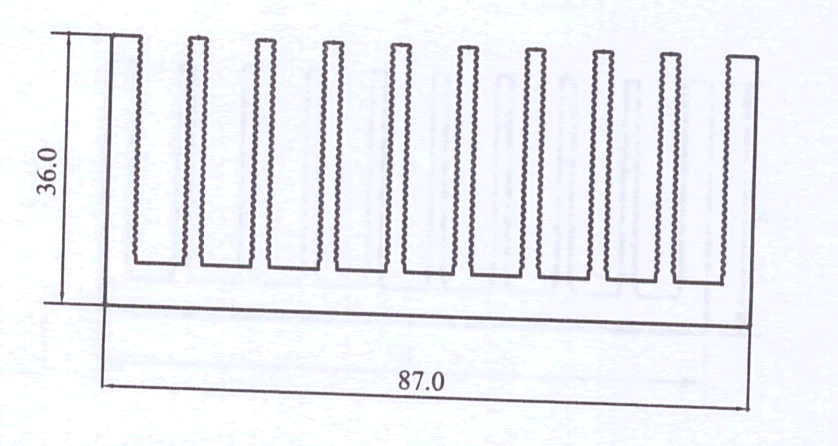

| WD-05026 | 87.000 | 36.000 | 3.420 |  |
|

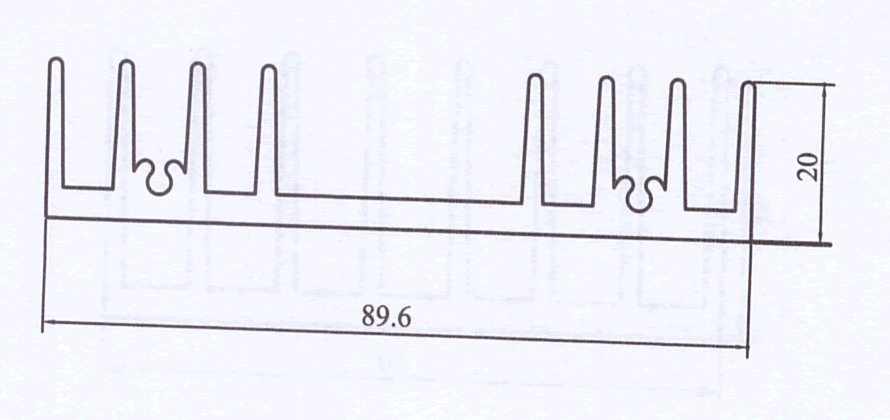

| WD-05027 | 89.600 | 20.000 | 1.710 |  |
|

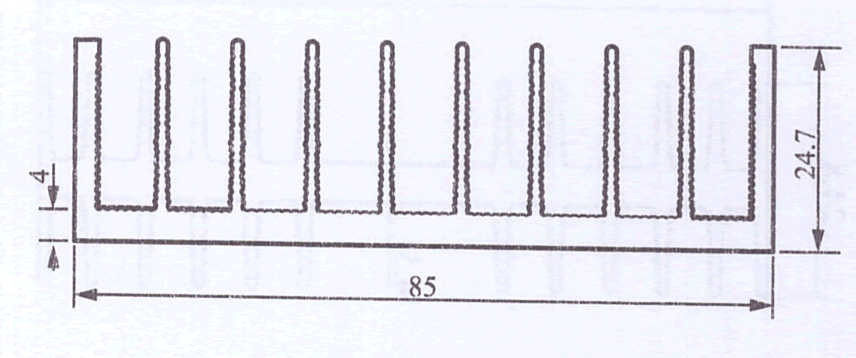

| WD-05028 | 85.000 | 24.700 | 1.820 |  |
