Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

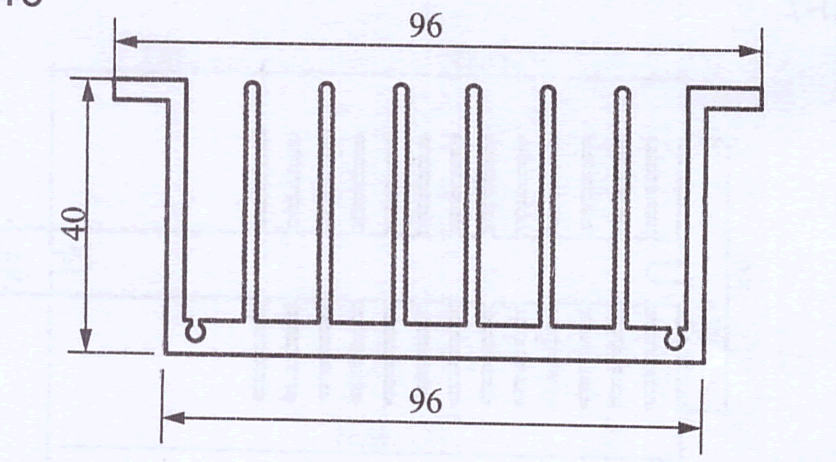

| WD-05059 | 96.000 | 40.000 | 2.920 |  |
|

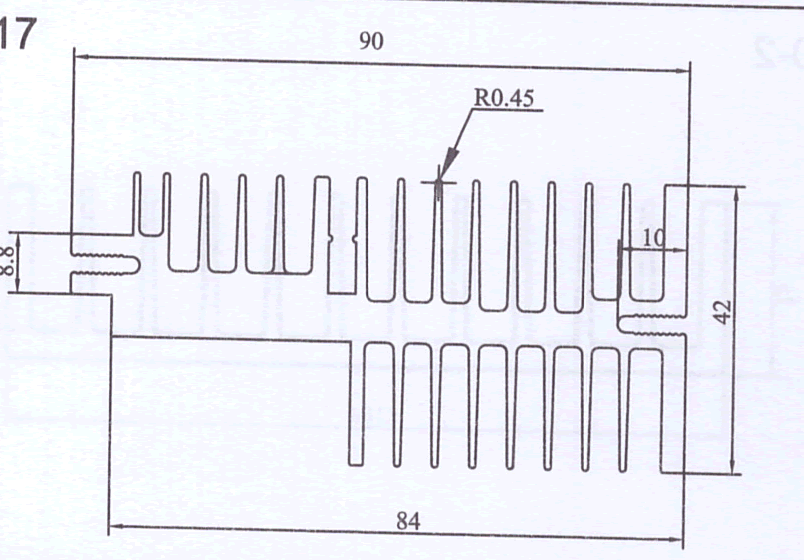

| WD-05060 | 84.000 | 42.000 | 3.400 |  |
|

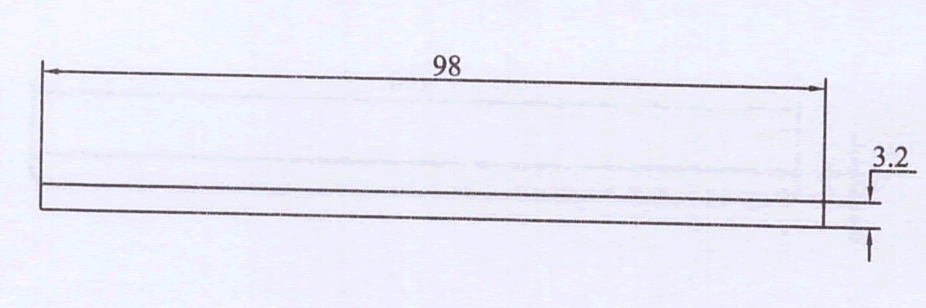

| WD-05061 | 98.000 | 3.200 | 0.846 |  |
|

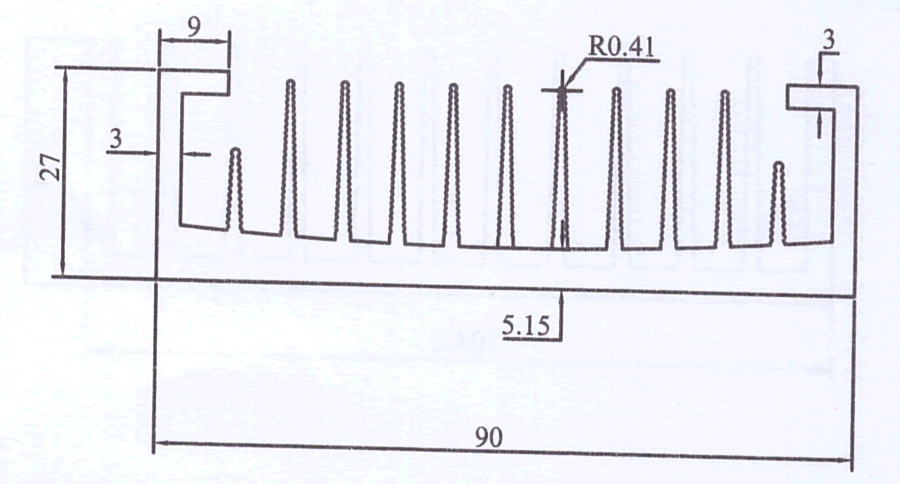

| WD-05062 | 90.000 | 27.000 | 0.000 |  |
|

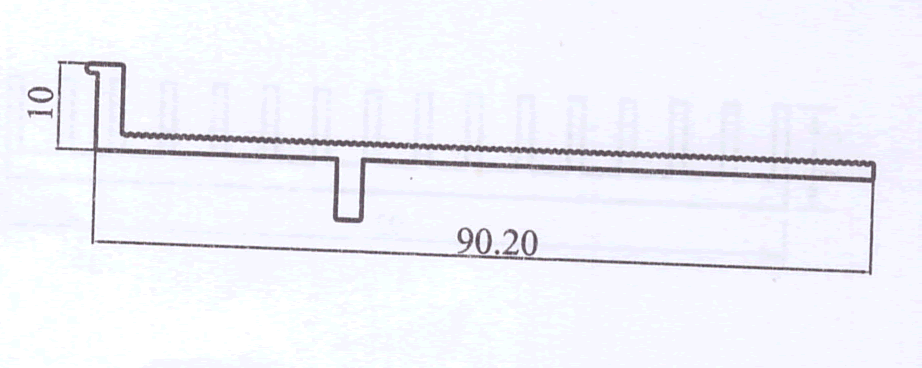

| WD-05063 | 90.200 | 10.000 | 0.590 |  |
|

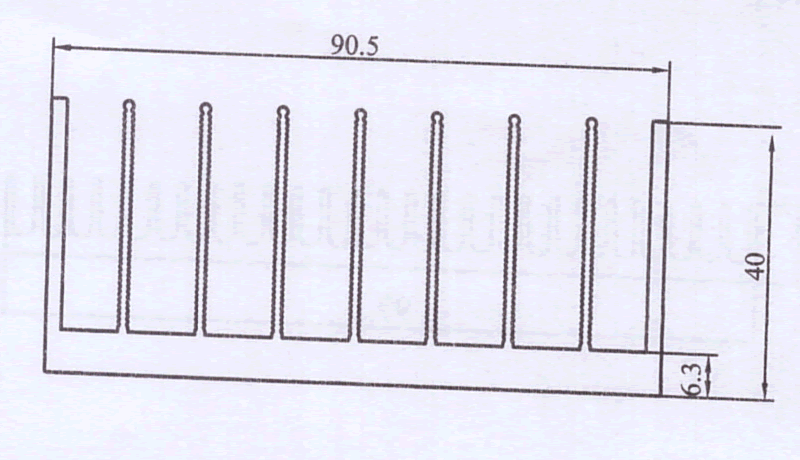

| WD-05064 | 90.500 | 40.000 | 2.750 |  |
