Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

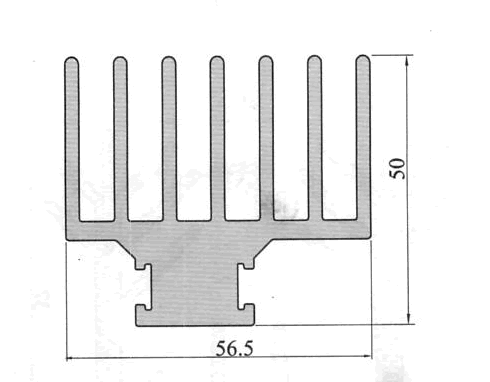

| WD-05761 | 56.500 | 50.000 | 2.859 |  |
|

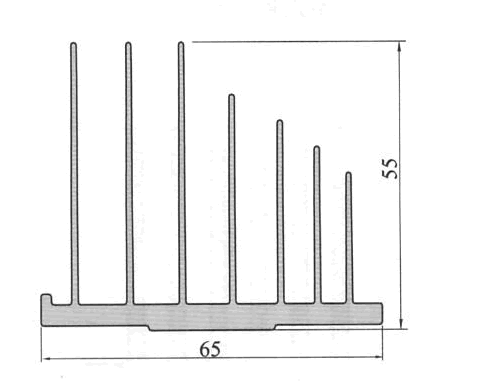

| WD-05762 | 65.000 | 55.000 | 1.613 |  |
|

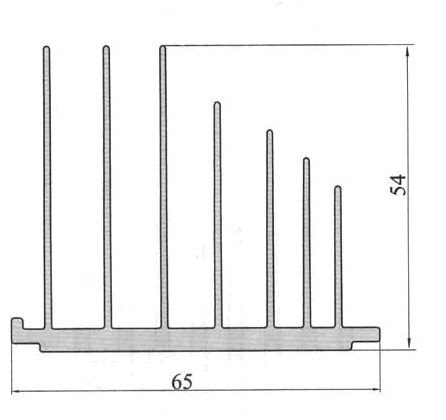

| WD-05763 | 65.000 | 54.000 | 1.508 |  |
|

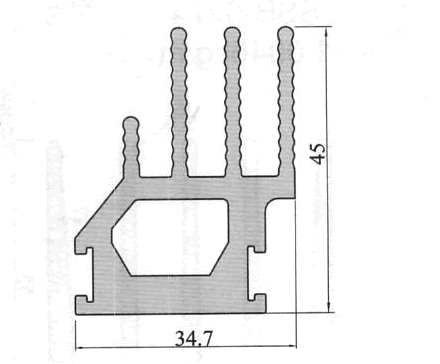

| WD-05764 | 34.700 | 45.000 | 1.535 |  |
|

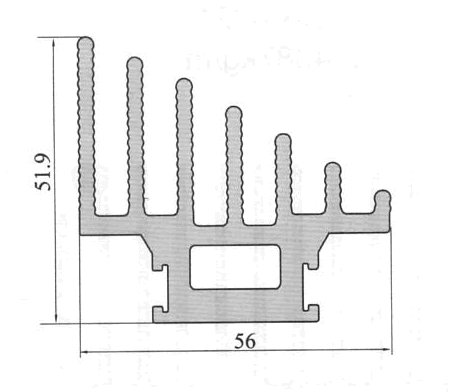

| WD-05765 | 56.000 | 51.900 | 2.300 |  |
|

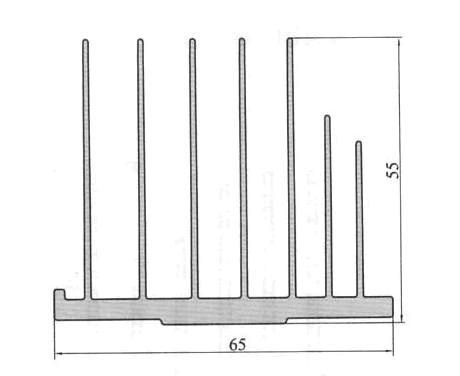

| WD-05766 | 65.000 | 55.000 | 1.724 |  |
