Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

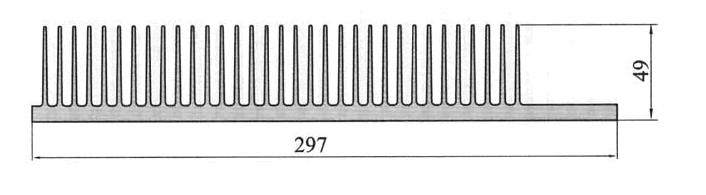

| WD-05821 | 297.000 | 49.000 | 14.005 |  |
|

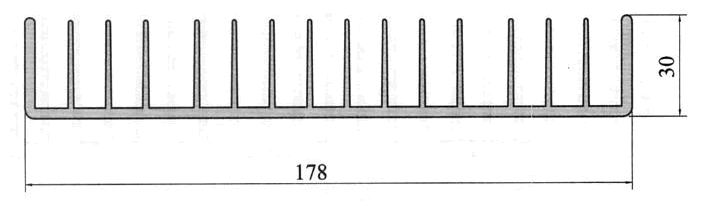

| WD-05822 | 178.000 | 30.000 | 3.440 |  |
|

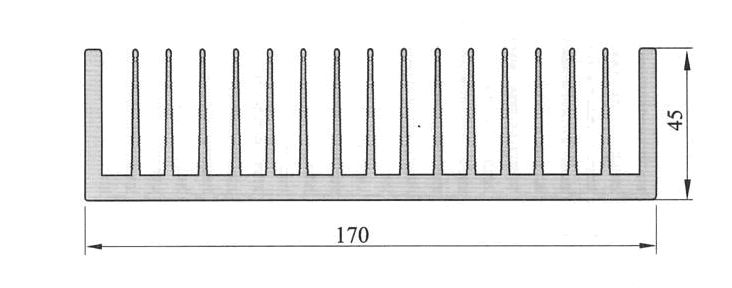

| WD-05823 | 170.000 | 45.000 | 7.140 |  |
|

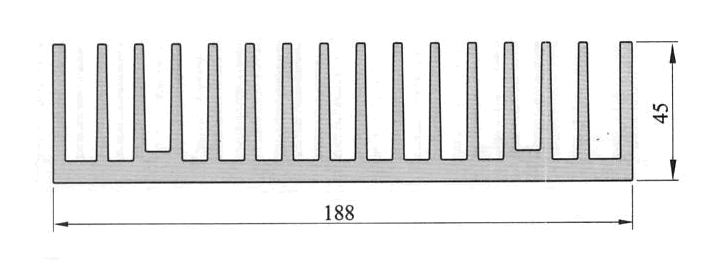

| WD-05824 | 188.000 | 45.000 | 9.289 |  |
|

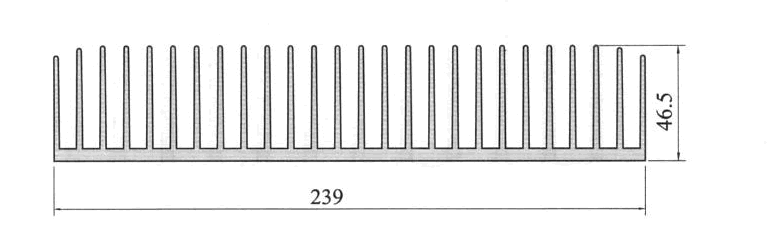

| WD-05825 | 239.000 | 46.500 | 9.386 |  |
|

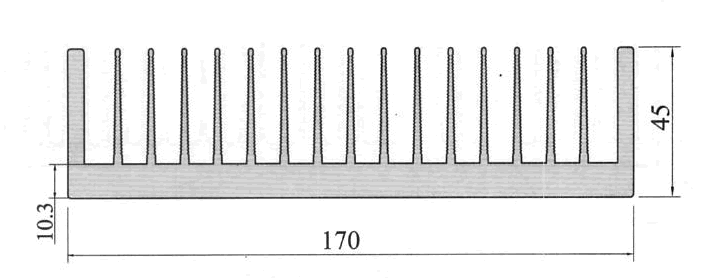

| WD-05826 | 170.000 | 45.000 | 8.093 |  |
