Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

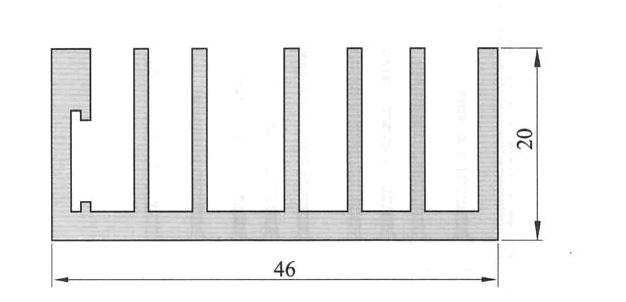

| WD-05899 | 46.000 | 20.000 | 0.941 |  |
|

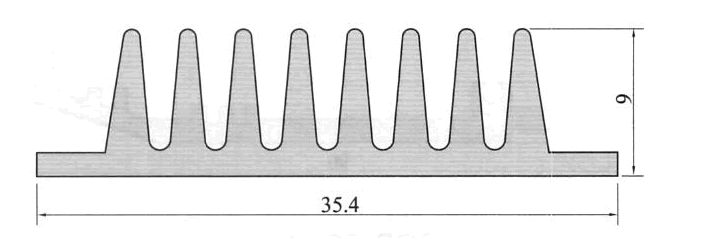

| WD-05900 | 35.400 | 9.000 | 0.411 |  |
|

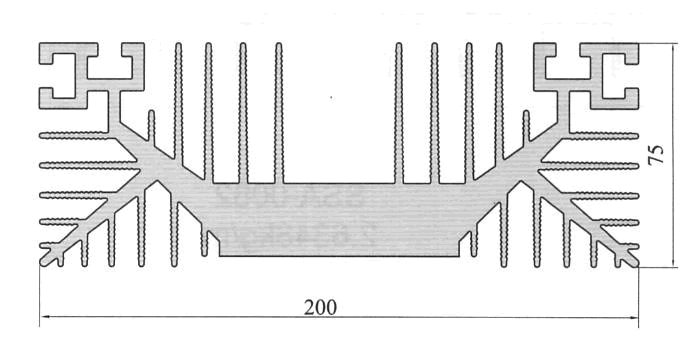

| WD-05901 | 200.000 | 75.000 | 15.230 |  |
|

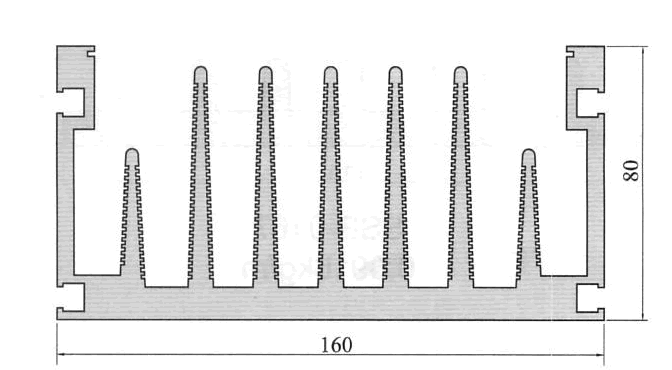

| WD-05902 | 160.000 | 80.000 | 11.390 |  |
|

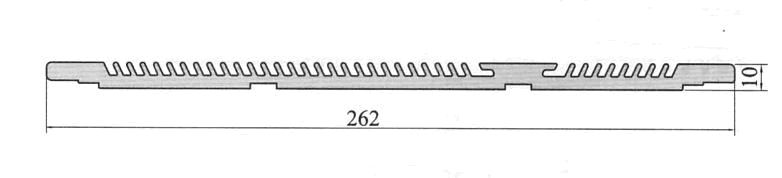

| WD-05903 | 262.000 | 10.000 | 5.009 |  |
|

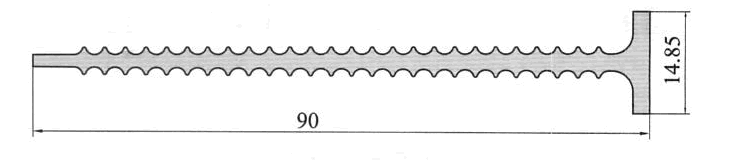

| WD-05904 | 90.000 | 14.850 | 0.768 |  |
